ARCHITECTURAL WINDOW FILM
By WrapStyle Brand Window Films


ABOUT

From Inception, WrapStyle Window Films has been marketing top-of-the-line professional grade window films. Insistence on quality combined with advanced technology and a practical understanding of the business has made the WrapStyle brand a leading choice for professional dealers and installers throughout North America and the world.WrapStyle window films are in a class apart.

They are the result of a single-source, vertically integrated manufacturing process. Simply put, that means WrapStyle films are manufactured in a state-of-the-art, ISO-9001:2000 certified facility that makes just about everything that goes into their window films, from the base petrochemical intermediate (DMT) right down to the finished products.

This eliminates dependency on other manufacturers enabling complete control over the entire manufacturing process—from polymers to packaged goods. That’s important because it ensures high quality and ultimately, total consumer satisfaction.

DISCOVER THE BENEFITS OF ARCHITECTURAL WINDOW FILM

Installing the WrapStyle window film in your home or office, you will enjoy all the benefits that only we can provide window films of the highest quality.

SAVE ENERGY

All WrapStyle window films help reduce transmission of heat through the glass. Depending on the selected movie, you can get a total of 78 percent of solar energy rejection.

ENHANCES APPEARANCE

The WrapStyle window films are available in a variety of densities of light and colors ranging from almost invisible to reflective colors that can complement the decor or theme of a building or construction.

INCREASES COMFORT

With less heat from the sun coming through the glass, there is less solar heat and less hot spots, so that the occupants of the building in question can enjoy a much more comfortable interior environment.

RESISTS RIPS OR SCRATCHES

All WrapStyle window films are made with a strong and scratch resistant coating as standard feature, this is designed to reduce the risk of damage from scratches due to normal handling and maintenance.

REDUCES DISCOLORATION

All WrapStyle window films reduce fading of furniture and decorative accessories by blocking up to 99% of harmful UV rays and up to 78 percent of the total solar energy. The exact degree of reduction of discoloration depends on your specific type of film, as well as the environment in general.

IMPROVES SAFETY

Although normal solar films products are not considered ``Security and Defense``, once the same remain attached to the glass, they can make the glass more resistant to even break because seals retain splinters or fragments of broken glass in the case of a break because of an accident or a storm occurs.

REDUCE THE BRIGHTNESS

Reducing the brightness caused by the reflection helps an interior environment is much more comfortable, more functional and can enjoy even more as it allows you to watch TV occupants and computer screens with more comfort and less discomfort.

INCREASES PRIVACY

Depending on what the WrapStyle window film you select, visual privacy can be improved. Ask your WrapStyle to explain the details.

WrapStyle offers a complete line-up of architectural window film products to serve a wide range of consumer and commercial needs. These films include our SunGate, Safety & Security and Specialty series of products. Architectural window films are often referred to as “flat glass” films because they are designed for installation on flat panes of residential and commercial glass.

INNOVATIVE ESTATE FILMS

WrapStyle Estate films are the choice of designers for beauty and performance. WrapStyle incorporates today’s most advanced metallizing technology to create these superior quality films that deliver outstanding performance characteristics and unsurpassed beauty. Innovative Estate films provide a subtle, tasteful appearance that’s ideal for both residential and commercial applications. Higher visible light transmission options work well for retail storefront applications. These are the highest quality WrapStyle window films available and once installed, these films are on the job 24 hours a day.

  • Full range of solar performance options
  • Available in widths from 36” up to 72” – no splicing seams on most glass
  • A durable scratch resistant coating is standard on all Estate series films
  • All versions well suited for various residential and commercial applications
  • Factory backed lifetime residential and 10-year commercial warranty coverage
  • Glass breakage & IG unit seal failure coverage available as applicable

DUAL REFLECTIVE FILMS

Even at night you can enjoy beautiful views from your windows with Estate Dual Reflective film, because it’s specifically designed to reduce inside reflectivity. In addition, this beautiful film provides high levels of solar heat rejection.

TYPES:


1. DUAL REFLECTIVE CHARCOAL 05
2. DUAL REFLECTIVE CHARCOAL 15
3. DUAL REFLECTIVE CHARCOAL 25
4. DUAL REFLECTIVE CHARCOAL 35
5. DUAL REFLECTIVE CHARCOAL 45

REFLECTIVE SERIES FILMS

WrapStyle’s Reflective series are the films of choice for high efficiency in the most demanding settings. They set the industry standard for effective solar heat rejection, in both residential and commercial applications, and are especially well suited for those challenging environments where a high level of solar control is needed, without compromising the appearance of the building. Reflective series films are popular for commercial applications where their reflective color delivers maximum solar performance, complements a building theme or provides that look of factory reflective glass. In addition to excellent glare and heat reduction, these films are aesthetically unique and will give a dramatic facelift to any commercial building renovation project. Best of all, once installed, these films are on the job 24 hours a day.

  • Full range of solar performance options
  • Available in widths from 36” up to 72” – no splicing seams on most glass
  • A durable scratch resistant coating is standard on all Reflective series films
  • All versions well suited for various residential and commercial applications
  • Factory backed lifetime residential and 10-year commercial warranty coverage
  • Glass breakage & IG unit seal failure coverage available as applicable

SILVER REFLECTIVE FILMS

Silver reflective window films are among the most powerful solar heat rejecting films available – and they do their job while maintaining minimal light reduction. Silver films are available in 20, 35 and 50 percent visible light transmission options. The 20 and 35 percent versions are extremely popular for commercial applications. Silver 50 is an outstanding high-light transmission window film with fantastic solar performance specifications, while delivering the preferred appearance for residential applications.

SILVER REFLECTIVE 50

Ply 2
Mil Thickness 2 mil
Solar Energy Transmittance 38%
Solar Energy Absorbance 36%
Solar Energy Reflectance 26%
Visible Light Transmitted 49%
Visible Light Absorbed 25%
Visible Light Reflected Interior 27%
Visible Light Reflected Exterior 26%
Ultra Violet Rejected 99%
Shading Coefficient 0.56
Solar Heat Reduction 44%
Total Solar Energy Rejection 52%
Glare Reduction 46%
Emissivity 0.78
U-Value 1.07

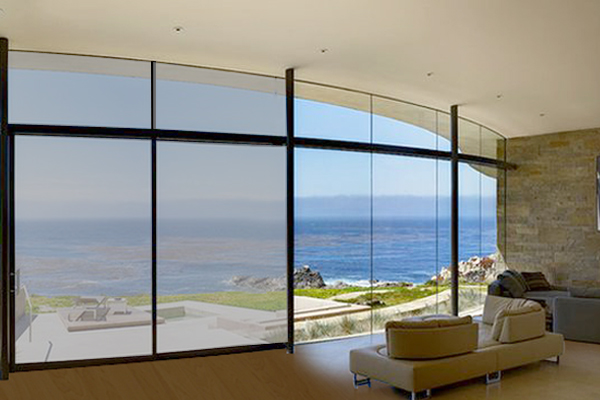

SILVER REFLECTIVE 35

Ply 2
Mil Thickness 2 mil
Solar Energy Transmittance 28%
Solar Energy Absorbance 35%
Solar Energy Reflectance 37%
Visible Light Transmitted 36%
Visible Light Absorbed 26%
Visible Light Reflected Interior 38%
Visible Light Reflected Exterior 38%
Ultra Violet Rejected 99%
Shading Coefficient 0.43
Solar Heat Reduction 57%
Total Solar Energy Rejection 63%
Glare Reduction 60%
Emissivity 0.72
U-Value 1.05

SILVER REFLECTIVE 20

Ply 2
Mil Thickness 2 mil
Solar Energy Transmittance 13%
Solar Energy Absorbance 34%
Solar Energy Reflectance 53%
Visible Light Transmitted 18%
Visible Light Absorbed 24%
Visible Light Reflected Interior 59%
Visible Light Reflected Exterior 58%
Ultra Violet Rejected 99%
Shading Coefficient 0.25
Solar Heat Reduction 75%
Total Solar Energy Rejection 78%
Glare Reduction 80%
Emissivity 0.64
U-Value 1.01

GREY REFLECTIVE FILMS

Grey Reflective is a silver film with a strong, cool look. Popular for commercial applications, Grey Reflective delivers maximum solar performance, complements a building theme or provides that factory reflective glass appearance. In addition to high performance glare and heat reduction, these films are aesthetically unique and can give your building a fresh, new look when used in a commercial renovation project.

TYPES:

1. GREY REFLECTIVE 05
2. GREY REFLECTIVE 20
3. GREY REFLECTIVE 35

BRONZE REFLECTIVE FILMS

Bronze Reflective is the silver film with “attitude.” It really makes a statement with a bold appearance that’s ideal for commercial applications where its highly reflective color provides unsurpassed solar performance. At the same time, Bronze Reflective has a warm glow that will complement a building’s exterior facade, looking amazingly like factory reflective glass. An excellent option for commercial or residential renovation projects, Bronze Reflective will give a building a dramatic new appearance.

BRONZE REFLECTIVE 30

Ply 2
Mil Thickness 2 mil
Solar Energy Transmittance 32%
Solar Energy Absorbance 51%
Solar Energy Reflectance 17%
Visible Light Transmitted 30%
Visible Light Absorbed 57%
Visible Light Reflected Interior 24%
Visible Light Reflected Exterior 13%
Ultra Violet Rejected 99%
Shading Coefficient 0.53
Solar Heat Reduction 47%
Total Solar Energy Rejection 53%
Glare Reduction 67%
Emissivity 0.73
U-Value 1.08

BRONZE REFLECTIVE 40

Ply 2
Mil Thickness 2.0 mil
Solar Energy Transmittance 44%
Solar Energy Absorbance 47%
Solar Energy Reflectance 9%
Visible Light Transmitted 42%
Visible Light Absorbed 48%
Visible Light Reflected Interior 9%
Visible Light Reflected Exterior 10%
Ultra Violet Rejected 99%
Shading Coefficient 0.66
Solar Heat Reduction 34%
Total Solar Energy Rejection 43%
Glare Reduction 53%
Emissivity 0.82
U-Value 1.06

SPECIALITY PRIVACY FILMS

Privacy films once applied to plain glass gives you maximum privacy.These films provides privacy from unwanted preying eyes, also enhance aesthetics and provides additional safety.

WHITE MATTE

Ply 1
Mil Thickness 2 mil
Solar Energy Transmittance 60%
Solar Energy Absorbance 22%
Solar Energy Reflectance 18%
Visible Light Transmitted 66%
Visible Light Absorbed 12%
Visible Light Reflected Interior 22%
Visible Light Reflected Exterior 22%
Ultra Violet Rejected 99%
Shading Coefficient 0.76
Solar Heat Reduction 24%
Total Solar Energy Rejection 34%
Glare Reduction 28%
Emissivity 0.85
U-Value 1.09

SILVER MATTE

Ply 2
Mil Thickness 2 mil
Solar Energy Transmittance 15%
Solar Energy Absorbance 38%
Solar Energy Reflectance 47%
Visible Light Transmitted 19%
Visible Light Absorbed 27%
Visible Light Reflected Interior 38%
Visible Light Reflected Exterior 54%
Ultra Violet Rejected 99%
Shading Coefficient 0.29
Solar Heat Reduction 71%
Total Solar Energy Rejection 75%
Glare Reduction 79%
Emissivity 0.70
U-Value 1.05

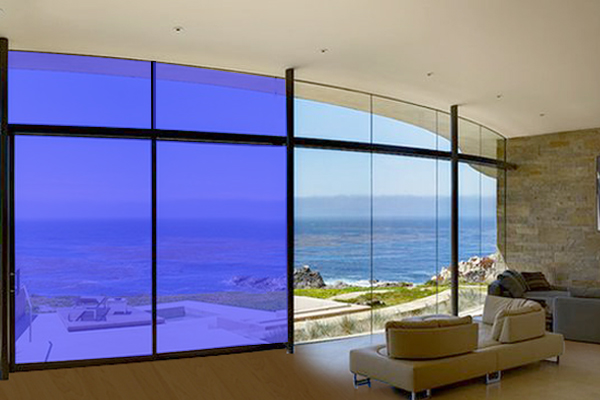

BLUE 35

Ply 1
Mil Thickness 1 mil
Solar Energy Transmittance 54%
Solar Energy Absorbance 39%
Solar Energy Reflectance 7%
Visible Light Transmitted 36%
Visible Light Absorbed 58%
Visible Light Reflected Interior 6%
Visible Light Reflected Exterior 6%
Ultra Violet Rejected 99%
Shading Coefficient 0.75
Solar Heat Reduction 25%
Total Solar Energy Rejection 35%
Glare Reduction 60%
Emissivity 0.86
U-Value 1.14

BRONZE MATTE

Ply 1
Mil Thickness 2 mil
Solar Energy Transmittance 43%
Solar Energy Absorbance 46%
Solar Energy Reflectance 11%
Visible Light Transmitted 35%
Visible Light Absorbed 56%
Visible Light Reflected Interior 9%
Visible Light Reflected Exterior 9%
Ultra Violet Rejected 99%
Shading Coefficient 0.65
Solar Heat Reduction 35%
Total Solar Energy Rejection 44%
Glare Reduction 62%
Emissivity 0.86
U-Value 1.14

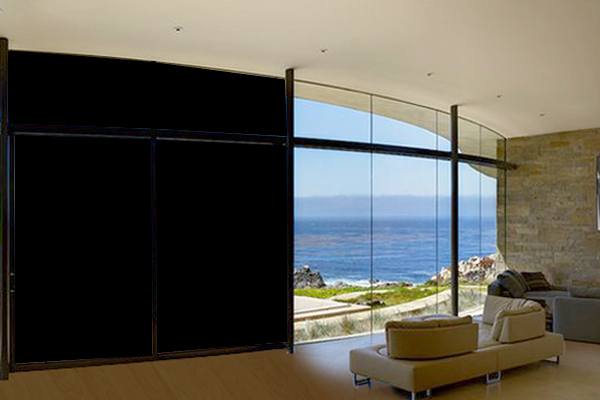

BLACK-OUT

Ply 3
Mil Thickness 2.5 mil
Solar Energy Transmittance 0%
Solar Energy Absorbance 66%
Solar Energy Reflectance 34%
Visible Light Transmitted 0%
Visible Light Absorbed 95%
Visible Light Reflected Interior 5%
Visible Light Reflected Exterior 5%
Ultra Violet Rejected 99%
Shading Coefficient 0.21
Solar Heat Reduction 79
Total Solar Energy Rejection 82%
Glare Reduction 100%
Emissivity 0.63
U-Value 1.00

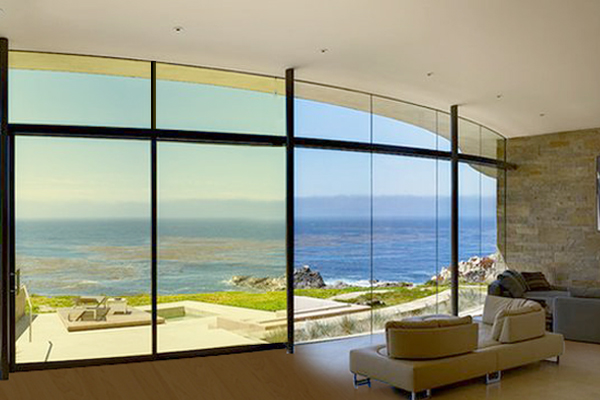

YELLOW 80

Ply 1
Mil Thickness 1 mil
Solar Energy Transmittance 72%
Solar Energy Absorbance 22%
Solar Energy Reflectance 6%
Visible Light Transmitted 83%
Visible Light Absorbed 10%
Visible Light Reflected Interior 7%
Visible Light Reflected Exterior 7%
Ultra Violet Rejected 99%
Shading Coefficient 0.90
Solar Heat Reduction 10%
Total Solar Energy Rejection 22%
Glare Reduction 8%
Emissivity 0.89
U-Value 1.13

GREY MATTE

Ply 1
Mil Thickness 2 mil
Solar Energy Transmittance 43%
Solar Energy Absorbance 46%
Solar Energy Reflectance 11%
Visible Light Transmitted 35%
Visible Light Absorbed 55%
Visible Light Reflected Interior 9%
Visible Light Reflected Exterior 10%
Ultra Violet Rejected 99%
Shading Coefficient 0.65
Solar Heat Reduction 35%
Total Solar Energy Rejection 44%
Glare Reduction 62%
Emissivity 0.86
U-Value 1.14

UV CLEAR

Ply 2
Mil Thickness 2 mil
Solar Energy Transmittance 81%
Solar Energy Absorbance 13%
Solar Energy Reflectance 6%
Visible Light Transmitted 89%
Visible Light Absorbed 5%
Visible Light Reflected Interior 6%
Visible Light Reflected Exterior 6%
Ultra Violet Rejected 99%
Shading Coefficient 0.98
Solar Heat Reduction 2%
Total Solar Energy Rejection 15%
Glare Reduction 2%
Emissivity 0.86
U-Value 1.15

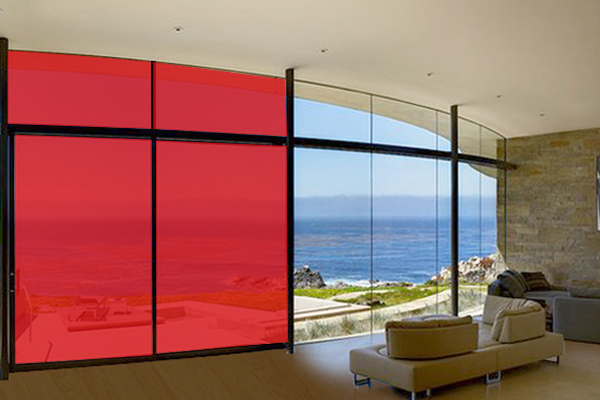

RED 20

Ply 1
Mil Thickness 1 mil
Solar Energy Transmittance 59%
Solar Energy Absorbance 35%
Solar Energy Reflectance 6%
Visible Light Transmitted 23%
Visible Light Absorbed 73%
Visible Light Reflected Interior 4%
Visible Light Reflected Exterior 4%
Ultra Violet Rejected 99%
Shading Coefficient 0.80
Solar Heat Reduction 20%
Total Solar Energy Rejection 31%
Glare Reduction 74%
Emissivity 0.89
U-Value 1.13

DECORATIVE FILMS

Decorative Films offer wide scope for creating different environments and desired ambience for home and office interiors. They are available in multiple colors and unique designs. They are suitable for a variety of applications viz: Doors,Panels,Partitions etc.

TYPES:

Mil Thickness: 1.0Mil, UltraViolet Transmitance: <1

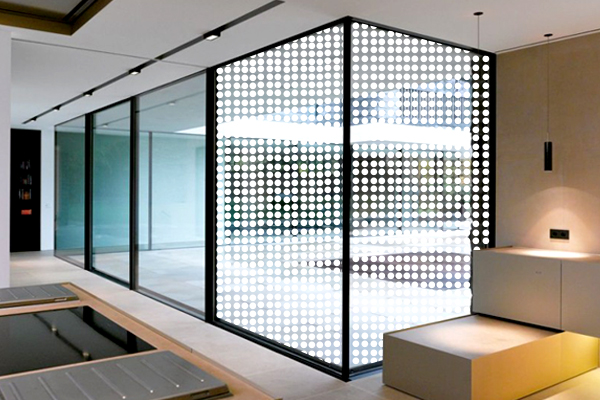

1. Ice Dot
2. Ice Cube
3. Ice Line
4. Ice Blinds

BLUE 35

Ply 1
Mil Thickness 1 mil
Solar Energy Transmittance 54%
Solar Energy Absorbance 39%
Solar Energy Reflectance 7%
Visible Light Transmitted 36%
Visible Light Absorbed 58%
Visible Light Reflected Interior 6%
Visible Light Reflected Exterior 6%
Ultra Violet Rejected 99%
Shading Coefficient 0.75
Solar Heat Reduction 25%
Total Solar Energy Rejection 35%
Glare Reduction 60%
Emissivity 0.86
U-Value 1.14

YELLOW 80

Ply 1
Mil Thickness 1 mil
Solar Energy Transmittance 72%
Solar Energy Absorbance 22%
Solar Energy Reflectance 6%
Visible Light Transmitted 83%
Visible Light Absorbed 10%
Visible Light Reflected Interior 7%
Visible Light Reflected Exterior 7%
Ultra Violet Rejected 99%
Shading Coefficient 0.90
Solar Heat Reduction 10%
Total Solar Energy Rejection 22%
Glare Reduction 8%
Emissivity 0.89
U-Value 1.13

BLUE 20

Mil Thickness 1.0 mil
Solar Energy Transmittance 49%
Solar Energy Absorbance 45%
Solar Energy Reflectance 6%
Visible Light Transmittanc 23%
Visible Light Reflectance 6%
Ultra Violet Transmittance <1
Shading Coefficient 0.71
Total Solar Energy Rejection 39%
Glare Reduction 74%
Emissivity 0.86
U Factor (BTU /HR./SQ.FT.) 1.13

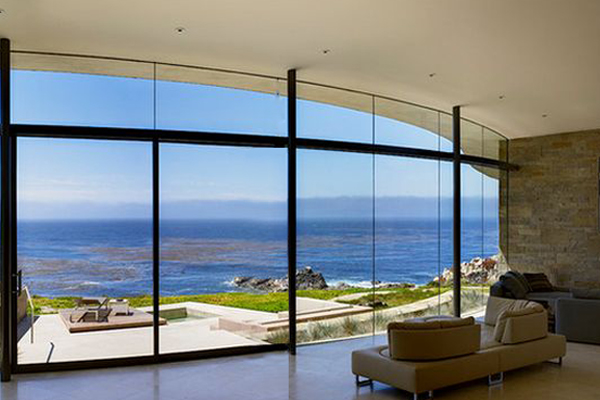

UV CLEAR FILM

Mil Thickness 2 mil
Solar Energy Transmittance 81%
Solar Energy Absorbance 13%
Solar Energy Reflectance 6%
Visible Light Transmittanc 89%
Visible Light Reflectance 6%
Ultra Violet Transmittance <1
Shading Coefficient 0.98
Total Solar Energy Rejection 15%
Glare Reduction 2%
Emissivity 0.86
U Factor (BTU /HR./SQ.FT.) 1.15

RED 20

Ply 1
Mil Thickness 1 mil
Solar Energy Transmittance 59%
Solar Energy Absorbance 35%
Solar Energy Reflectance 6%
Visible Light Transmitted 23%
Visible Light Absorbed 73%
Visible Light Reflected Interior 4%
Visible Light Reflected Exterior 4%
Ultra Violet Rejected 99%
Shading Coefficient 0.80
Solar Heat Reduction 20%
Total Solar Energy Rejection 31%
Glare Reduction 74%
Emissivity 0.89
U-Value 1.13

WrapStyle Guard Safety Films

These films are optically clear, transparent, high impact resistant polyester films, which once installed on glass,gives additional strength, reduces glare & prevents glass from splintering on impact. Typical thickness are 4 Mil & 7 Mil & in combination of Suncontrol Film. WrapStyle Guard Safety Films are generally applied at high security zones like mbassies, Banks, Government Buildings, Malls, Airports, Hotels and Hospitals.

SOLAR SECURITY FILMS:

We also offer combination of the security benefits of CLEAR WrapStyle Guard Safety Film with the heat and UV control properties of solar control films. The result has been the creation of a product that offers three great consumer benefits:- WrapStyle Guard Safety Protection, Solar Heat Control, UV Radiation Protection.

Benefits of WrapStyle Guard Safety Films:

Thermoplastic polyurethane (TPU) used in product construction is an Aliphatic polycaprolactone base film.These films have a high degree of ydrolysis and UV Resistance. The Adhesive used is a crystal clear acrylic pressure sensitive which has a removable, repositionable, non-yellowing property. PPF Installation gel is recommended for enhancing workability on most difficult surfaces.

  • WrapStyle Guard Safety from High Impact

    Violent acts, natural disasters, vandalism or accidents can shatter your building's windows and flying glass can be responsible for most of the damage, injuries and deaths. Much of these destruction can be controlled and prevented by Garware Suncontrol WrapStyle Guard Safety & security films.

  • Bomb Blasts / Terrorism / Civil Unrest

    In a bomb blast, when your building envelope is compromised, much of the damage is done by flying glass. Garware Suncontrol WrapStyle Guard Safety film helps to minimise the impact.

  • Deter Thieves

    Garware WrapStyle Guard Safety Film is a powerful deterrent to smash-and–grab thieves as well. It forms a strong but virtually invisible shield that holds broken glass in place delaying and deterring perpetrators whose goal is quick entry through shattered windows.

  • Ignition Resistant

    WrapStyle Guard Safety Films are very ignition resistant (when installed on glass) and exhibit no flame spread, as in flames will not expand across the film. These laminates are extremely hard to ignite and are self-extinguishing when removed from direct flame.

  • Ensure Brilliant Optical Clarity

    WrapStyle Guard Safety Film comes with option of different VLTs. Clear window film forms an invisibile shield. Its doesn't compromise on the light factor and ensures clear visibility.

  • Energy Efficiency

    Solar WrapStyle Guard Safety Films can deflect heat incident on the glass thereby reducing the load of the Air condition, which results in less energy consumption.

  • UV / IR Radiation Protection

    Solar WrapStyle Guard Safety Films can deflect heat incident on the glass thereby reducing the load of the Air condition, which results in less energy consumption.

4 MIL CLEAR

Ply 2
Mil Thickness 4 mil
Solar Energy Transmittance 83%
Solar Energy Absorbance 11%
Solar Energy Reflectance 6%
Visible Light Transmitted 90%
Visible Light Absorbed 1%
Visible Light Reflected Interior 8%
Visible Light Reflected Exterior 9%
Ultra Violet Rejected 99%
Shading Coefficient 0.98
Solar Heat Reduction 2%
Total Solar Energy Rejection 13%
Glare Reduction 1%
Emissivity 0.89
U-Value 1.12

4 MIL SILVER REFLECTIVE 20

Ply 3
Mil Thickness 4 mil
Solar Energy Transmittance 12%
Solar Energy Absorbance 41%
Solar Energy Reflectance 47%
Visible Light Transmitted 17%
Visible Light Absorbed 29%
Visible Light Reflected Interior 55%
Visible Light Reflected Exterior 54%
Ultra Violet Rejected 99%
Shading Coefficient 0.26
Solar Heat Reduction 74%
Total Solar Energy Rejection 78%
Glare Reduction 81%
Emissivity 0.60
U-Value 0.98

4 MIL CLEAR ANTIGRAFFITY

Ply 1
Mil Thickness 4 mil
Solar Energy Transmittance 83%
Solar Energy Absorbance 11%
Solar Energy Reflectance 6%
Visible Light Transmitted 90%
Visible Light Absorbed 1%
Visible Light Reflected Interior 8%
Visible Light Reflected Exterior 9%
Ultra Violet Rejected 9%
Shading Coefficient 0.98
Solar Heat Reduction 2%
Total Solar Energy Rejection 13%
Glare Reduction 1%
Emissivity 0.89
U-Value 1.12

7 MIL CLEAR

Ply 2
Mil Thickness 7 mil
Solar Energy Transmittance 81%
Solar Energy Absorbance 12%
Solar Energy Reflectance 7%
Visible Light Transmitted 91%
Visible Light Absorbed 1%
Visible Light Reflected Interior 8%
Visible Light Reflected Exterior 8%
Ultra Violet Rejected 99%
Shading Coefficient 0.98
Solar Heat Reduction 2%
Total Solar Energy Rejection 15%
Glare Reduction 0%
Emissivity 0.88
U-Value 1.12

4 MIL HP NATURAL 35

Ply 3
Mil Thickness 4 mil
Solar Energy Transmittance 36%
Solar Energy Absorbance 48%
Solar Energy Reflectance 16%
Visible Light Transmitted 39%
Visible Light Absorbed 47%
Visible Light Reflected Interior 20%
Visible Light Reflected Exterior 14%
Ultra Violet Rejected 99%
Shading Coefficient 0.57
Solar Heat Reduction 43%
Total Solar Energy Rejection 51%
Glare Reduction 57%
Emissivity 0.80
U-Value 1.11

4 MIL CLEAR EXTERIOR ANTIGRAFFITY

Ply 1
Mil Thickness 4 mil
Solar Energy Transmittance 83%
Solar Energy Absorbance 10%
Solar Energy Reflectance 7%
Visible Light Transmitted 90%
Visible Light Absorbed 1%
Visible Light Reflected Interior 8%
Visible Light Reflected Exterior 9%
Ultra Violet Rejected 99%
Shading Coefficient 0.98
Solar Heat Reduction 2%
Total Solar Energy Rejection 13%
Glare Reduction 1%
Emissivity 0.88
U-Value 1.12

4 MIL SILVER REFLECTIVE 35

Ply 3
Mil Thickness 4 mil
Solar Energy Transmittance 28%
Solar Energy Absorbance 35%
Solar Energy Reflectance 37%
Visible Light Transmitted 36%
Visible Light Absorbed 26%
Visible Light Reflected Interior 38%
Visible Light Reflected Exterior 38%
Ultra Violet Rejected 99%
Shading Coefficient 0.43
Solar Heat Reduction 57%
Total Solar Energy Rejection 63%
Glare Reduction 60%
Emissivity 0.72
U-Value 1.05

4 MIL CHARCOAL 40

Ply 2
Mil Thickness 4 mil
Solar Energy Transmittance 55%
Solar Energy Absorbance 39%
Solar Energy Reflectance 6%
Visible Light Transmitted 39%
Visible Light Absorbed 54%
Visible Light Reflected Interior 5%
Visible Light Reflected Exterior 7%
Ultra Violet Rejected 99%
Shading Coefficient 0.76
Solar Heat Reduction 24%
Total Solar Energy Rejection -
Glare Reduction 57%
Emissivity 0.86
U-Value 1.14

2 MIL CW

Ply 2
Mil Thickness 2 mil
Solar Energy Transmittance 81%
Solar Energy Absorbance 13%
Solar Energy Reflectance 6%
Visible Light Transmitted 89%
Visible Light Absorbed 5%
Visible Light Reflected Interior 6%
Visible Light Reflected Exterior 6%
Ultra Violet Rejected 99%
Shading Coefficient 0.98
Solar Heat Reduction 2%
Total Solar Energy Rejection 15%
Glare Reduction 2%
Emissivity 0.86
U-Value 1.15
